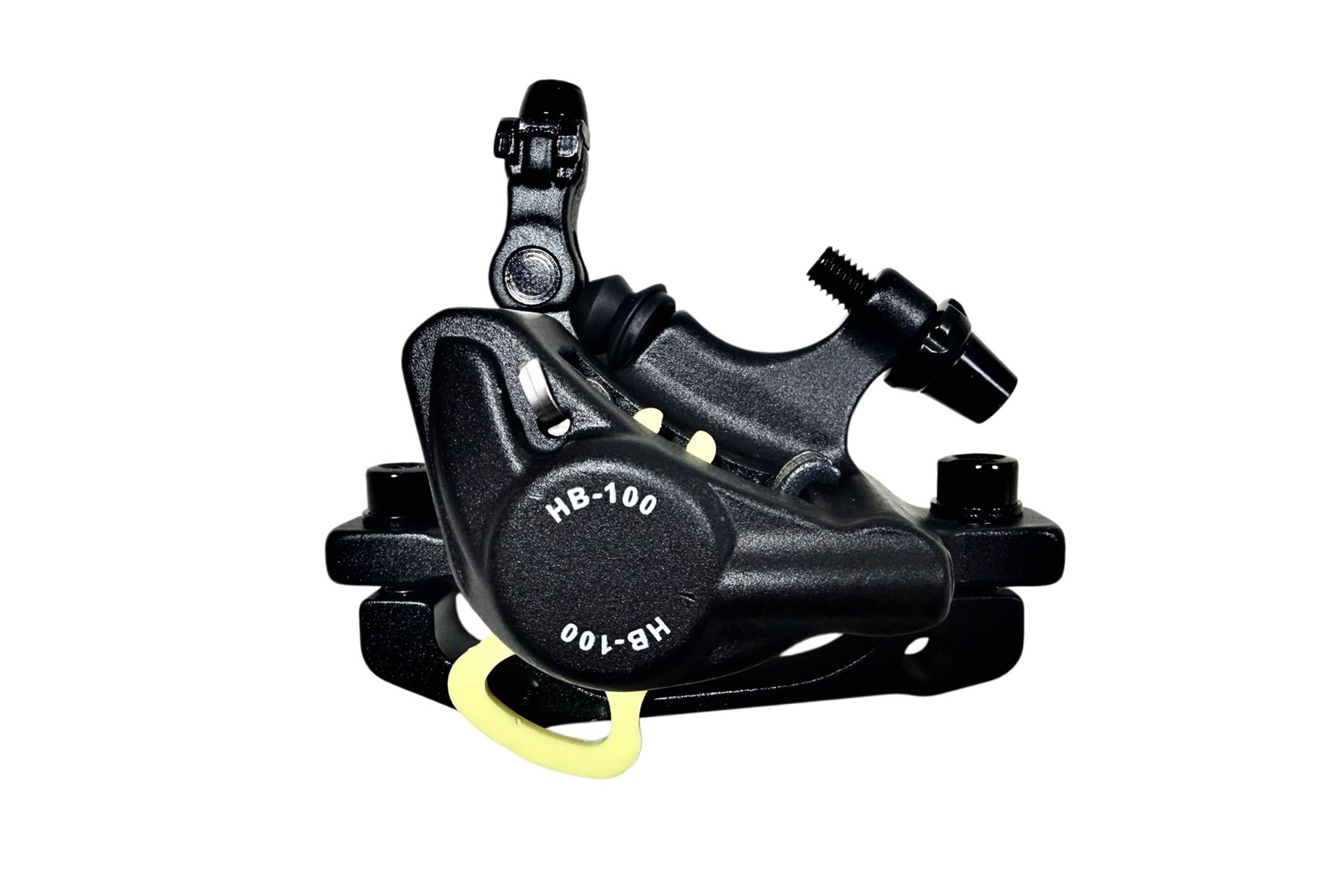

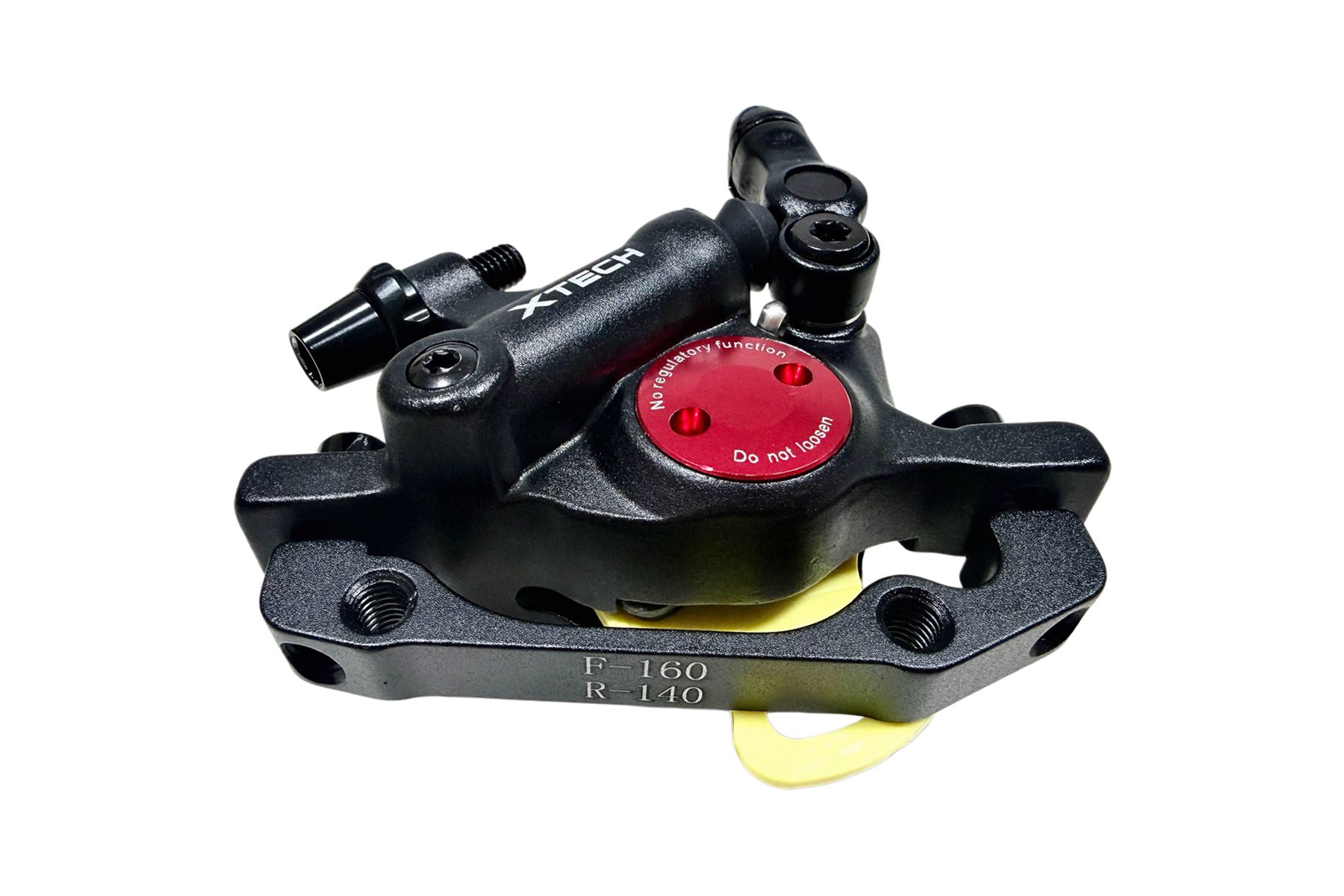

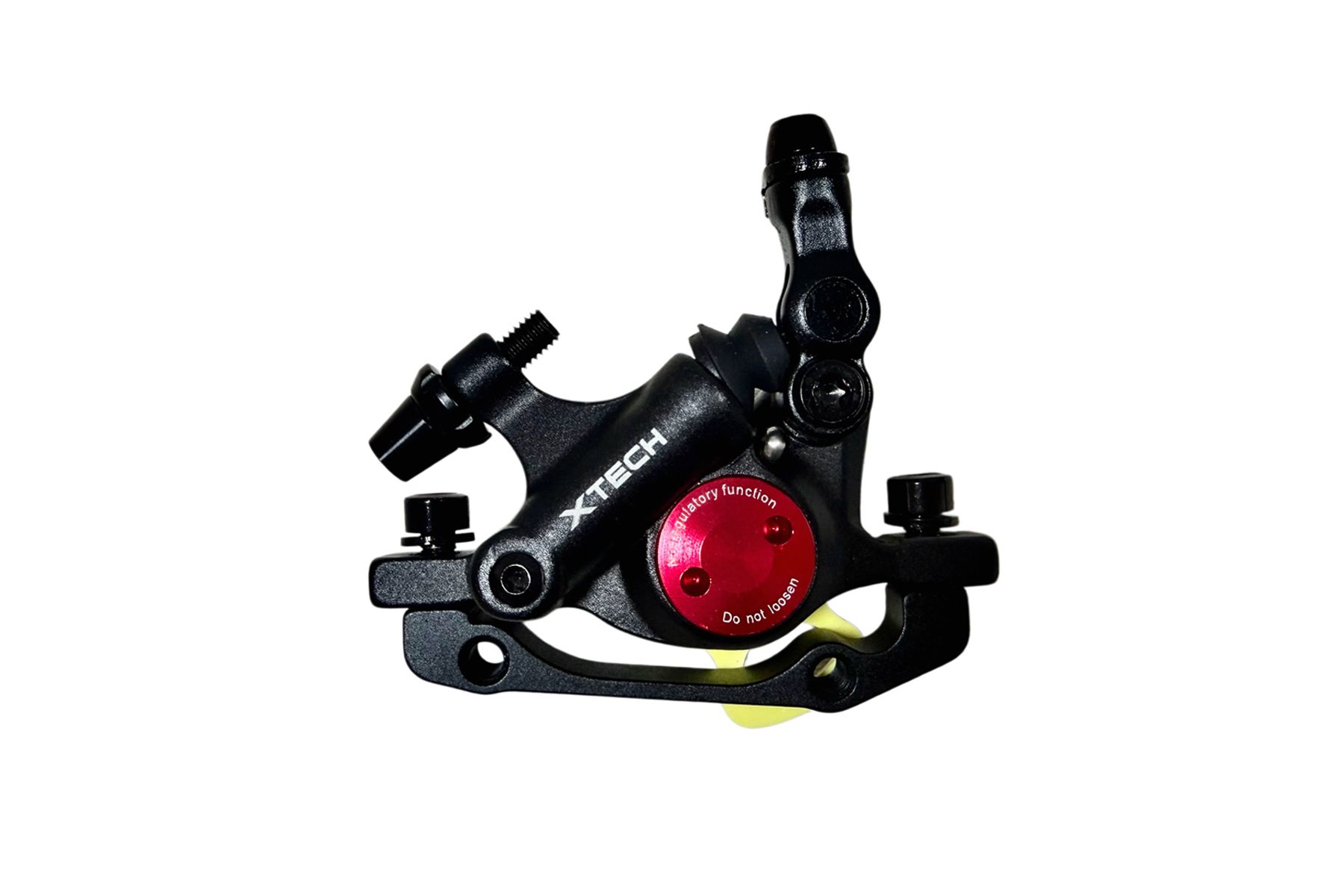

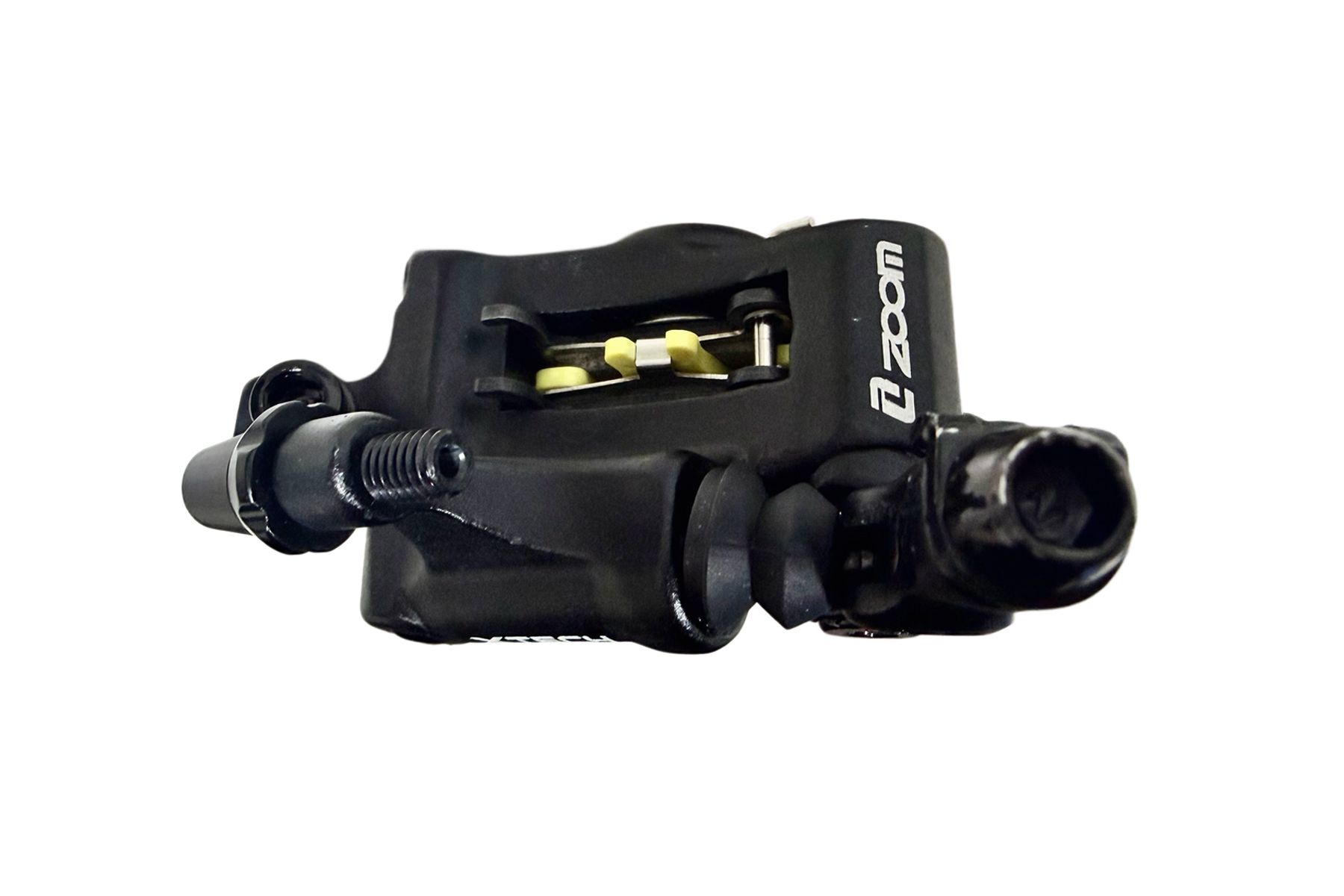

Zoom XTECH HB-100 2-Piston Semi-Hydraulic Brake Calliper

• The Zoom XTECH HB-100 is a 2-piston semi-hydraulic brake calliper, fitted as original equipment on early non-Pro versions of the Kaabo Mantis 10, including the Duo dual-motor model.

  It uses a hydraulic actuation system for the pistons, with hydraulic pressure triggered by a conventional mechanical brake cable. This design delivers superior braking power and finer modulation compared to fully mechanical cable brakes, though it also introduces additional potential failure points that may affect long-term service life.

  Calliper is Left orientation. Orientation defines the location of the cable entry as you look at the outer side of the calliper. A calliper with left orientation, sitting on top of swing arm will suit rear left hand side of scooter & front right hand side. It will also suit front left hand side if located vertically "behind the fork".

  Supplied in black colour. Calipers are produced in other colours, such as Red, Blue, Purple and Rainbow.
